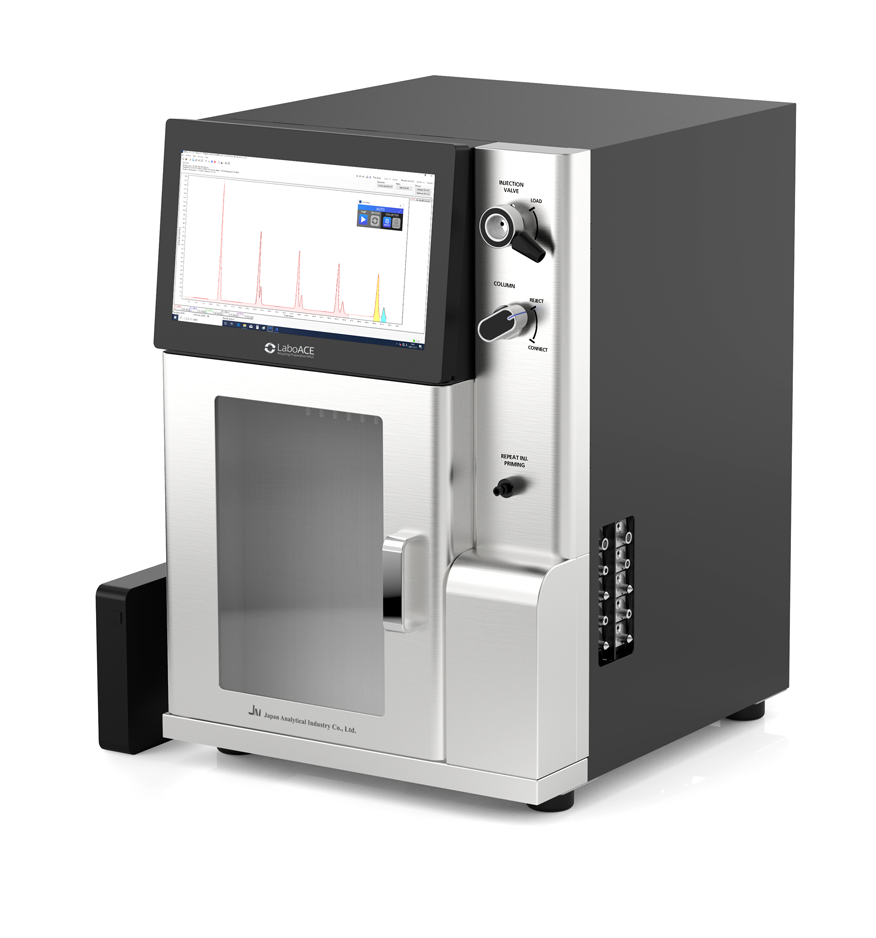

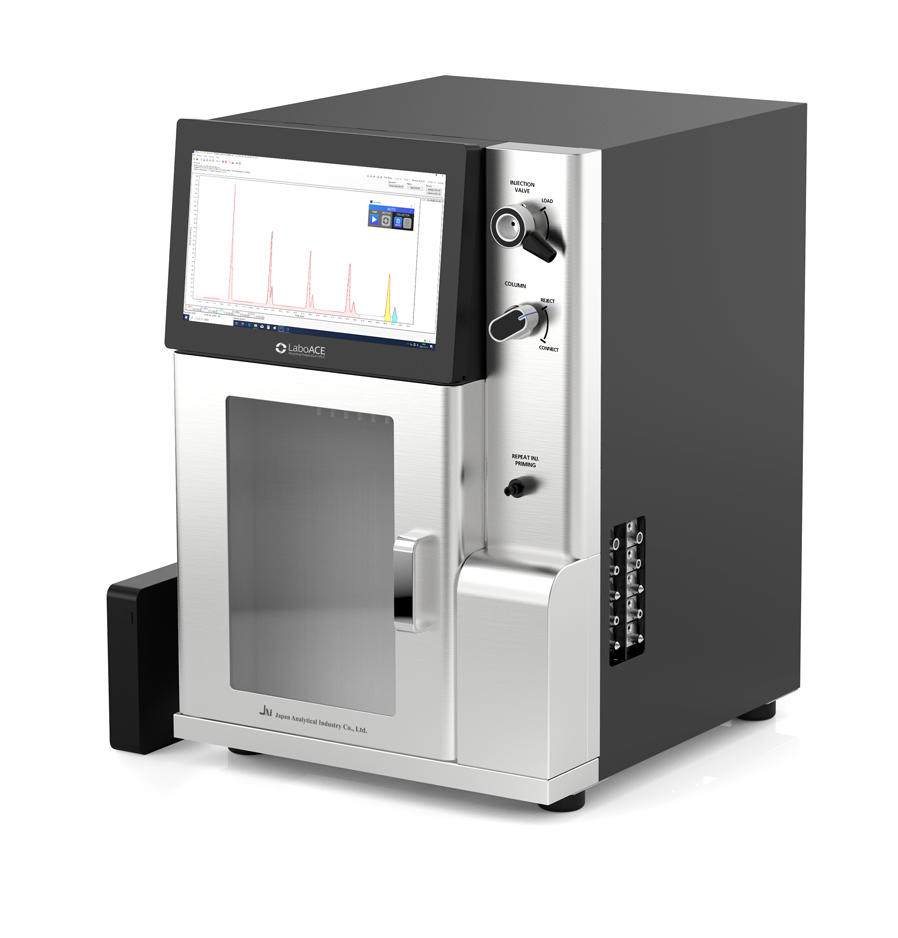

LaboACE LC-7080 Plus II
LaboACE LC-7080 Plus II
Automate Your Recycling Separation
Automate Your Recycling Separation
The LaboACE LC-7080 II offers simple and intuitive automated event programming.
Operators can easily set up events such as repeated sample injection, removal of unwanted peaks, recycling, and fraction collection.
A new feature, Peak Detection, automatically collects fractions when peaks begin to appear.
- Repeat sample injection
- Enable stacked injection for solvent and time savings
- Improve peak resolution through recycling separation
- Discard unwanted peaks
- Trigger fraction collection based on peak detection
PC-Controlled Scale-Up (NEW)

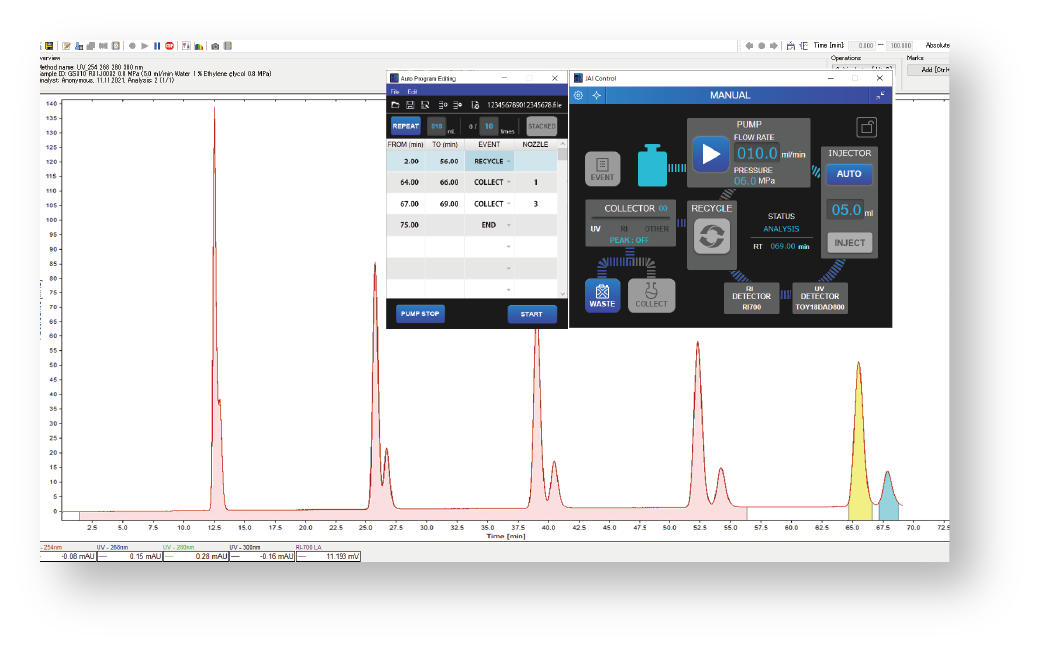

Two software packages are preinstalled in the LaboACE LC-7080 Plus II.
“JAI Scan” acquires chromatograms, while “JAI Control” enables full PC control of the system.
Based on acquired chromatograms and recorded operational events (Injection / Recycle / Collection), users can easily program repeatable purification processes for seamless scale-up.
Improved Purity and Yield (NEW)
The further optimized recycling flow path delivers enhanced purity and yield.
Highly purified compounds can be obtained with high recovery in a shorter time, especially when used in combination with JAIGEL-HR series GPC columns.
Peak Detection
Automatically collects fractions as peaks begin to appear, based on time, peak height, and/or peak slope.
This ensures reliable collection of target peaks.
Multiple Injection Options
Manual injection and a repeat injector are provided as standard.
The repeat injector is a direct automated sample loading system, ideal for large-volume injections or repeated injections of the same sample.
Accurate Fraction Timing
The delay between sample detection and fraction collection, caused by system delay volume, is automatically calculated to ensure precise timing.
Auto Cleanup Function
Automatically cleans the internal flow paths.
The auto cleanup function, combined with the patented non-diffusion recycling system, prevents residual contamination within the system, enabling you to obtain ultra-pure compounds with confidence.
It also makes solvent replacement much easier.
Recycling Preparative Chromatograph (Patented)
The system is equipped with a non-diffusion recycling system (patented) that prevents samples from flowing back into the solvent line, eliminates baseline drift and peak broadening, and avoids detector damage caused by back pressure.
This design protects detectors, columns, and your valuable samples.

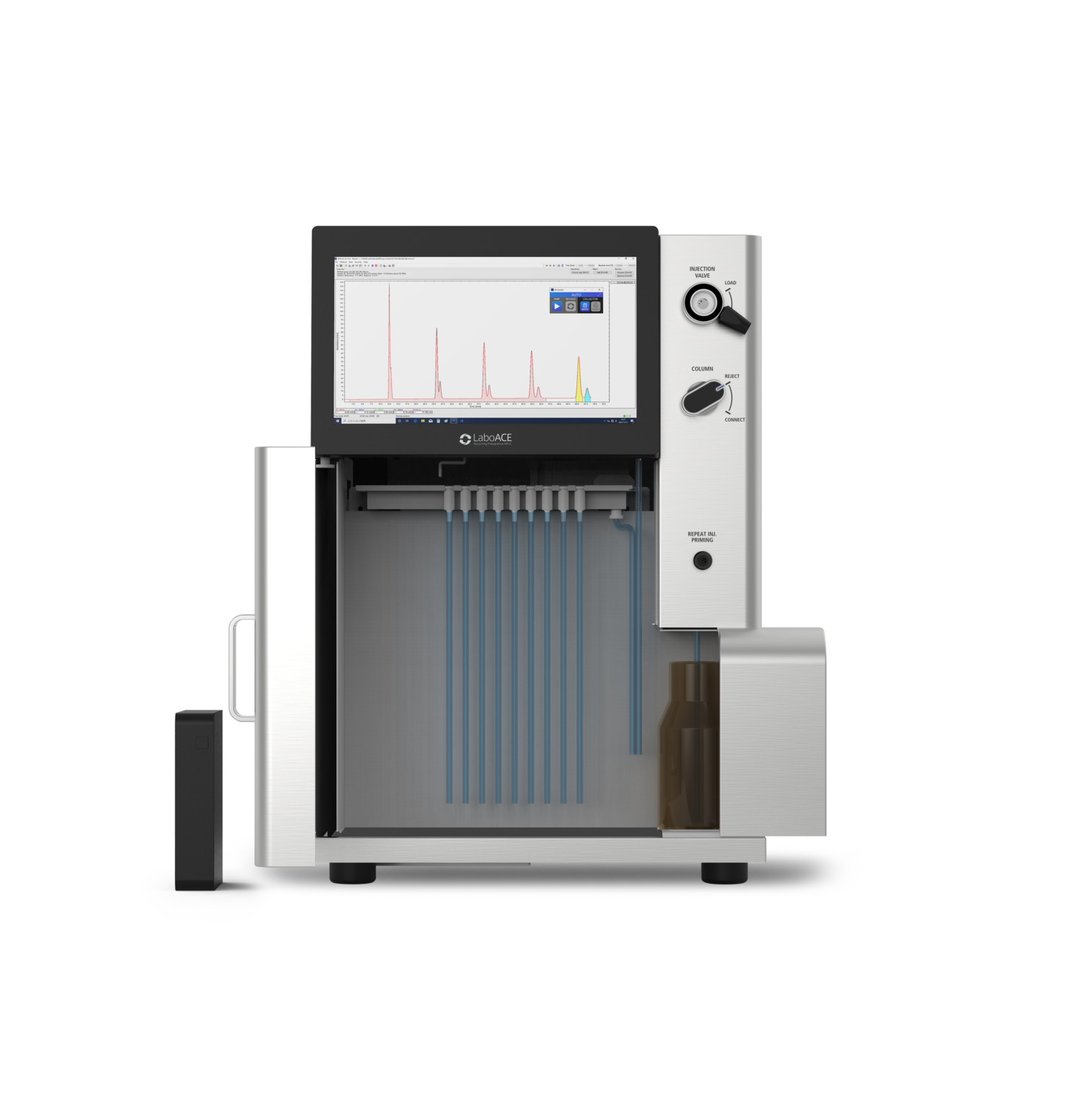

Manual and auto injectors, along with a 9-port auto fraction collector, are integrated into a compact system design.
Up to two detectors (UV and RI) can also be installed within the LaboACE unit.

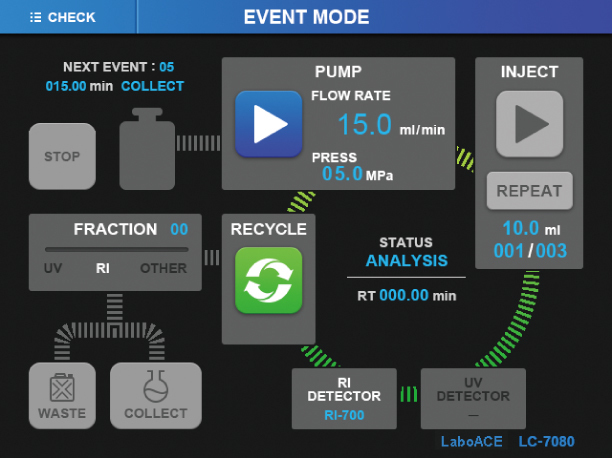

The 11.6-inch touch panel allows anyone to easily operate the LaboACE system, from solvent delivery to fraction collection.
Reliable Solvent Delivery
Backed by over 60 years of expertise in recycling technology, the system features a JAI-designed parallel double-plunger pump optimized for stable solvent delivery and recycling performance.
This design significantly improves recycling efficiency.
Automate Your Recycling Separation
The LaboACE LC-7080 II offers simple and intuitive automated event programming.
Operators can easily set up events such as repeated sample injection, removal of unwanted peaks, recycling, and fraction collection.
A new feature, Peak Detection, automatically collects fractions when peaks begin to appear.
- Repeat sample injection
- Enable stacked injection for solvent and time savings
- Improve peak resolution through recycling separation
- Discard unwanted peaks
- Trigger fraction collection based on peak detection
PC-Controlled Scale-Up (NEW)
Two software packages are preinstalled in the LaboACE LC-7080 Plus II.
“JAI Scan” acquires chromatograms, while “JAI Control” enables full PC control of the system.
Based on acquired chromatograms and recorded operational events (Injection / Recycle / Collection), users can easily program repeatable purification processes for seamless scale-up.
Improved Purity and Yield (NEW)
The further optimized recycling flow path delivers enhanced purity and yield.
Highly purified compounds can be obtained with high recovery in a shorter time, especially when used in combination with JAIGEL-HR series GPC columns.
Peak Detection
Automatically collects fractions as peaks begin to appear, based on time, peak height, and/or peak slope.
This ensures reliable collection of target peaks.
Multiple Injection Options
Manual injection and a repeat injector are provided as standard.
The repeat injector is a direct automated sample loading system, ideal for large-volume injections or repeated injections of the same sample.
Accurate Fraction Timing
The delay between sample detection and fraction collection, caused by system delay volume, is automatically calculated to ensure precise timing.
Auto Cleanup Function
Automatically cleans the internal flow paths.
The auto cleanup function, combined with the patented non-diffusion recycling system, prevents residual contamination within the system, enabling you to obtain ultra-pure compounds with confidence.
It also makes solvent replacement much easier.
Recycling Preparative Chromatograph (Patented)
The system is equipped with a non-diffusion recycling system (patented) that prevents samples from flowing back into the solvent line, eliminates baseline drift and peak broadening, and avoids detector damage caused by back pressure.
This design protects detectors, columns, and your valuable samples.
Manual and auto injectors, along with a 9-port auto fraction collector, are integrated into a compact system design.
Up to two detectors (UV and RI) can also be installed within the LaboACE unit.
The 11.6-inch touch panel allows anyone to easily operate the LaboACE system, from solvent delivery to fraction collection.
Reliable Solvent Delivery
Backed by over 60 years of expertise in recycling technology, the system features a JAI-designed parallel double-plunger pump optimized for stable solvent delivery and recycling performance.
This design significantly improves recycling efficiency.
Detectors
Detectors
Two detectors can be fitted in the LaboACE series small body and can detect simultaneously.
UV Detector
Especially designed for recycling preparative HPLC with stability and high detection sensitivity.
| UV-254 LA | UV-VIS 4ch 400LA | UV-VIS 4ch 800LA | |||||
| Wave length | Fixed at 254 nm Select wavelength as option |
4ch variable from 200 - 400 nm |
4ch variable from 200 - 800 nm |
||||
| Measurement method | Single beam | ||||||
| Flow cell | Optical path length: 0.3 mm Volume: 45 μL (Option : 1.4 mm and 2.4 mm) |
||||||
RI Detector
It gives quick baseline stabilization and won't require much time before injection.
Applicable for both preparative and analytical HPLC.
| RI-700 LA | |
| Measurement method | Deflection |
| Flow cell | Volume 8 μL |
| RI range | 1.00 - 1.75 |
Two detectors can be fitted in the LaboACE series small body and can detect simultaneously.
UV Detector
Especially designed for recycling preparative HPLC with stability and high detection sensitivity.
| UV-254 LA | UV-VIS 4ch 400LA | UV-VIS 4ch 800LA | |||||
| Wave length | Fixed at 254 nm | 4ch variable from 200-400 nm |
4ch variable from 200-800 nm |
||||
| Measurement | Single beam | ||||||
| Flow cell | 0.3 mm (option : 1.4 mm, 2.4 mm) 45 μL volume |
||||||
RI Detector
It gives quick baseline stabilization and won't require much time before injection.
Applicable for both preparative and analytical HPLC.
| RI-700 LA | |
| Measurement method | Deflection |
| Flow cell | 8 μL volume |
| RI range | 1.00 - 1.75 |
Chromatography Software
Chromatography Software
Chromatogram Data Acquisition Software
JAI Scan acquires up to 5 channels chromatographic information
| JAI Scan | |||||
| Number of channel | 5 | ||||
| PC interface | USB2.0 | ||||
| Auto zero | Available | ||||
| Event signal | Injection, Recycle and Fraction | ||||
| Start signal | Synchronized with injection | ||||
| Operating environment | JAI Scan software comes with a special PC | ||||
| Data transfer | CSV, cdf, mat etc. | ||||
| Absorption spectrum display | Available with UV-VIS 4ch LA | ||||
Chromatogram Data Acquisition Software
JAI Scan acquires up to 5 channels chromatographic information
| JAI Scan | |||||
| Number of channel | 5 | ||||
| PC interface | USB2.0 | ||||
| Auto zero | Available | ||||
| Event signal | Injection, Recycle and Fraction | ||||
| Start signal | Synchronized with injection | ||||
| Operating environment | JAI Scan software comes with a special PC | ||||
| Data transfer | CSV, cdf, mat etc. | ||||
| Absorption spectrum display | Available with UV-VIS 4ch LA | ||||
Specifications
Specifications
| LaboACE LC-7080 II | |||||
| Pump | P-80LA2 | ||||
| Solvent delivery system | Reciprocating double plunger | ||||
| Flow rate range | 0.1- 80.0 mL/min | ||||
| Maximum discharge pressure | 30 MPa |
||||
| Plunger | 7.0 mm ID | ||||
| Stroke | 8 mm | ||||
| Discharge rate per stroke | 300 μL | ||||
| Gradient module | Optional : Low pressure binary gradient. It supports mixing two solvents isocratically for recycling separation. |
||||
| Variable injector (Manual) | Rheodyne 7725i | ||||
| Sample loop | 10 mL as standard | ||||
| Repeat injector | Built-in Direct auto sample loading system 0.1 to 99.9 mL,99 injections | ||||
| Recycle system | With non-diffusion function recycling system (Patented) | ||||
| Recycle method | Switching scheme of solenoid valve | ||||
| Auto program ・Event programming ・Auto fraction collection ・Auto replay ・Stacked injection |
Set and save 3 programs with up to 30 different events each. Automate 99 fraction collections triggered by peak slope and/or peak height. Auto-replay the whole program with injection of additional samples successively. Utilize the time spent waiting for peak elution when injecting successively additional samples. |
||||
| Fraction collector | Standard : Built-in 9 ports fraction Optional : External fraction collector with 33 ports. 15 ports or 6 ports are also available. |
||||
| Touch panel | 11.6 inch LCD touch panel | ||||
| Pressure display and limiter | Display and program on LCD touch panel | ||||
| Event signal | Injection, Recycle and Collect | ||||
| Auto cleanup function | To wash flow channel by program | ||||
| Pump stop timer | To stop pump at 0 - 999 mins | ||||
| Bottle capacity | To move to a next fraction bottle at 0-999 mL when collecting to prevent from overflow | ||||
| Timer with alarm | To set alarm at 0 - 999 mins | ||||
| Dimensions | 387 (W) x 567 (H) x 466 (D) mm | ||||
| Weight | 33 Kg | ||||
| Power | 100V, 500VA/200 - 240V, 500VA | ||||
| Column stand | Optional | ||||
| Solvent tank stand | Optional | ||||
| LaboACE LC-7080 Plus II | |||||
| Pump model | P-80LA2 | ||||
| Solvent delivery system | Reciprocating double plunger | ||||
| Flow rate | 0.1 - 80.0 mL/min | ||||
| Maximum discharge pressure | 30 MPa | ||||
| Plunger | 7.0 mm ID | ||||
| Stroke | 8 mm | ||||
| Discharge rate per stroke | 300 μL | ||||
| Gradient module | Option : Low pressure binary gradient. It supports mixing two solvents isocratically for recycling separation. | ||||
| Variable injector (Manual) | Rheodyne 7725i | ||||
| Sample loop | 10 mL (standard) 3 mL, 5 mL, 15 mL (optional) |
||||
| Repeat injector | Built-in Direct auto sample loading system 0.1 to 99.9 mL,99 injections | ||||
| Recycle system | With non-diffusion function recycling system (Patented) | ||||
| Recycle method | Switching scheme of solenoid valve | ||||
| Auto program ・Event programming ・Auto fraction collection ・Auto replay ・Stacked injection |
Set and save 3 programs with up to 30 different events each. Automate 99 fraction collections triggered by peak slope and/or peak height. Auto-replay the whole program with injection of additional samples successively. Utilize the time spent waiting for peak elution when injecting successively additional samples. |
||||
| Fraction collector | Standard : Built-in 9 ports fraction Optional : External fraction collector with 33 ports. 15 ports or 6 ports can also be selected (optional). |
||||
| Touch panel | 8.4 inch touch panel screen | ||||
| Pressure display and limiter | Program and display on LCD | ||||
| Event signal | Injection, Recycle and Collect | ||||
| Auto cleanup function | Enables to wash flow channel by program | ||||
| Pump stop timer | Enables to stop pump at 0-999 mins | ||||
| Bottle capacity | Enables to prevent from overflow in a collection bottle |
||||
| Timer with alarm | Enables to set alarm at 0-999 mins | ||||
| Dimensions | 387(W) x 567(H) x 466(D)mm | ||||
| Weight | 40 Kg | ||||
| Power | 100V, 500VA/200 - 240V, 500VA | ||||
| Column stand | Optional | ||||
| Solvent tank stand | Optional | ||||
