High speed and solvent interchangeable organic GPC Columns
JAIGEL-HR Series

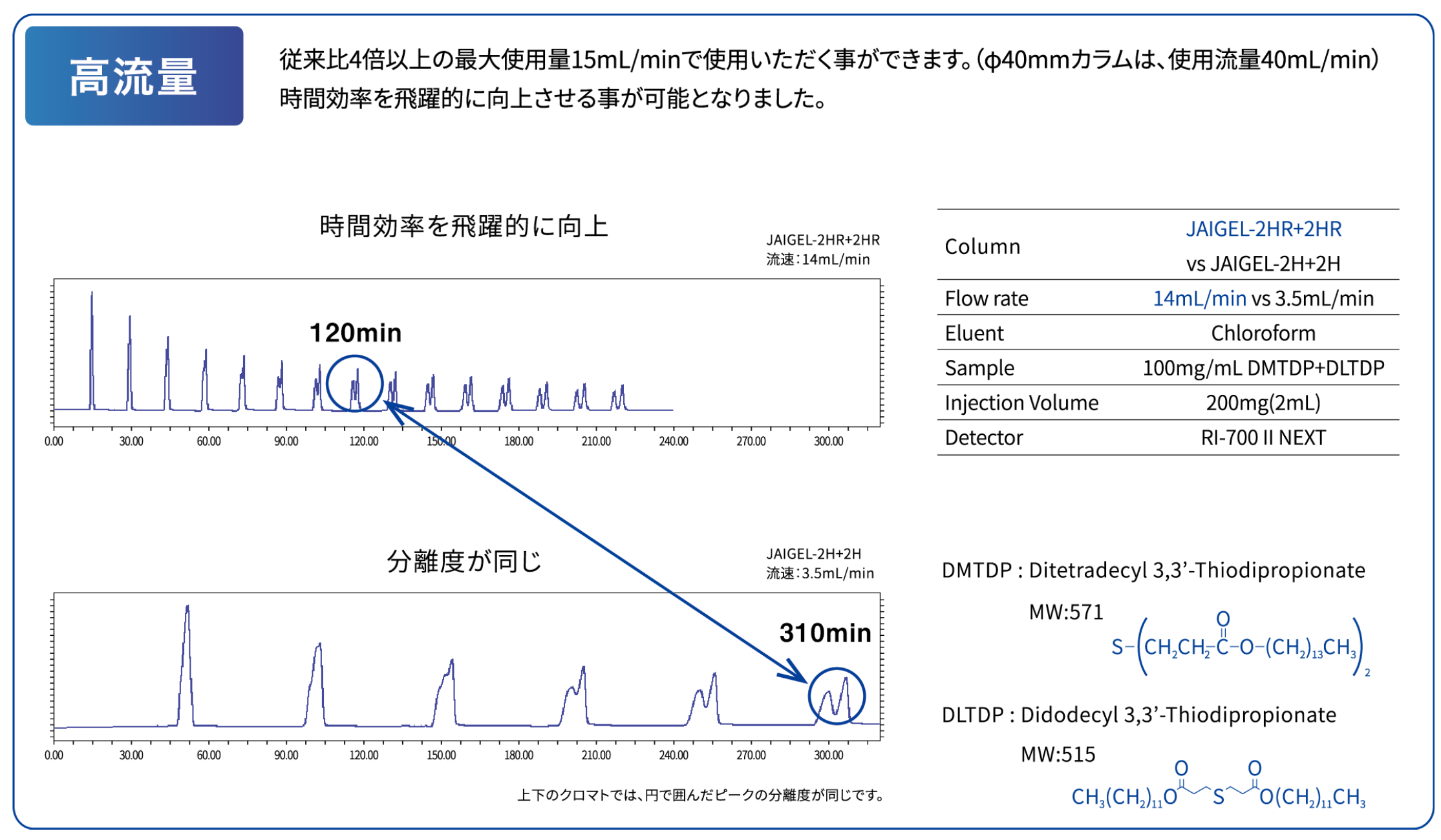

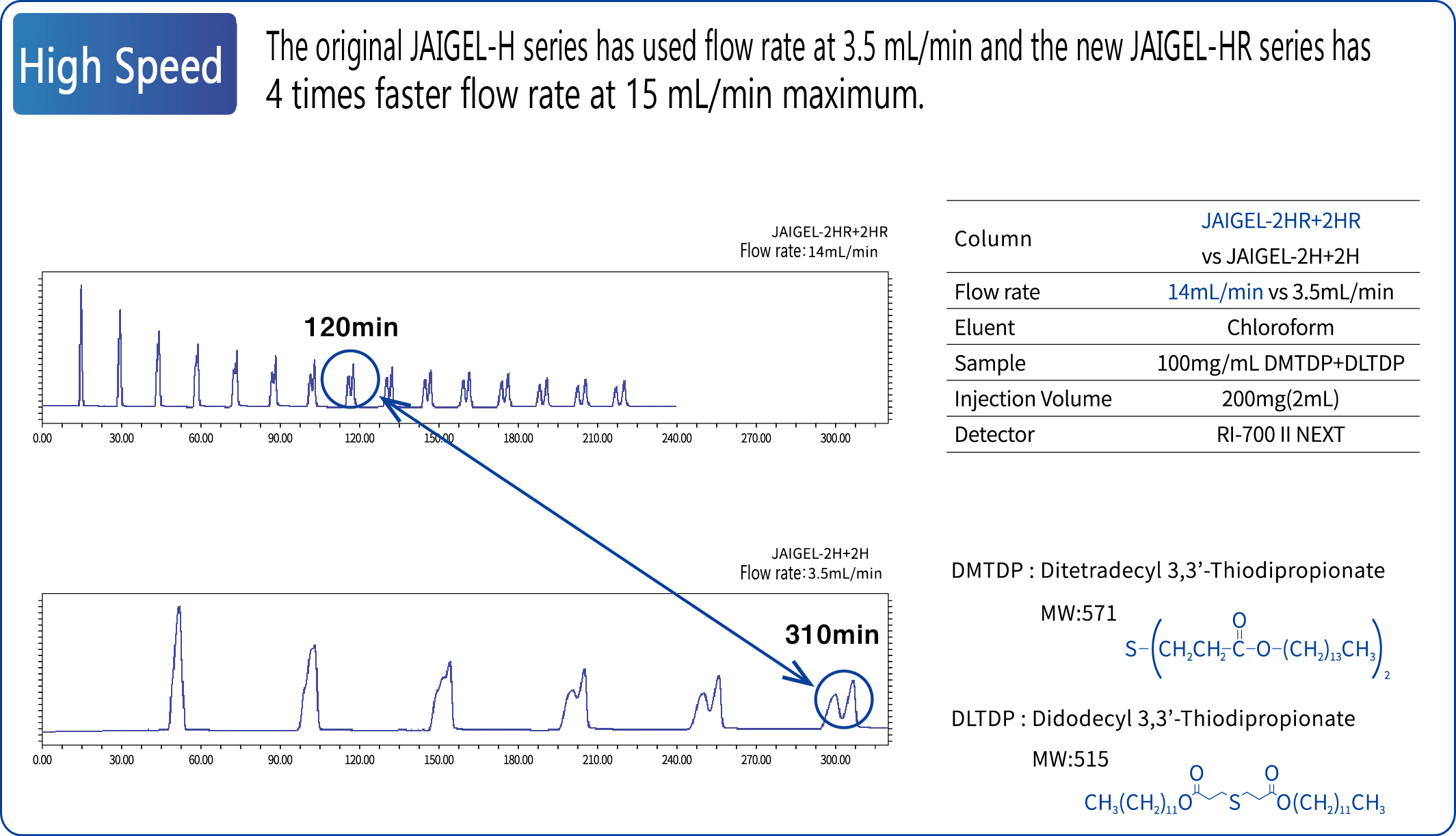

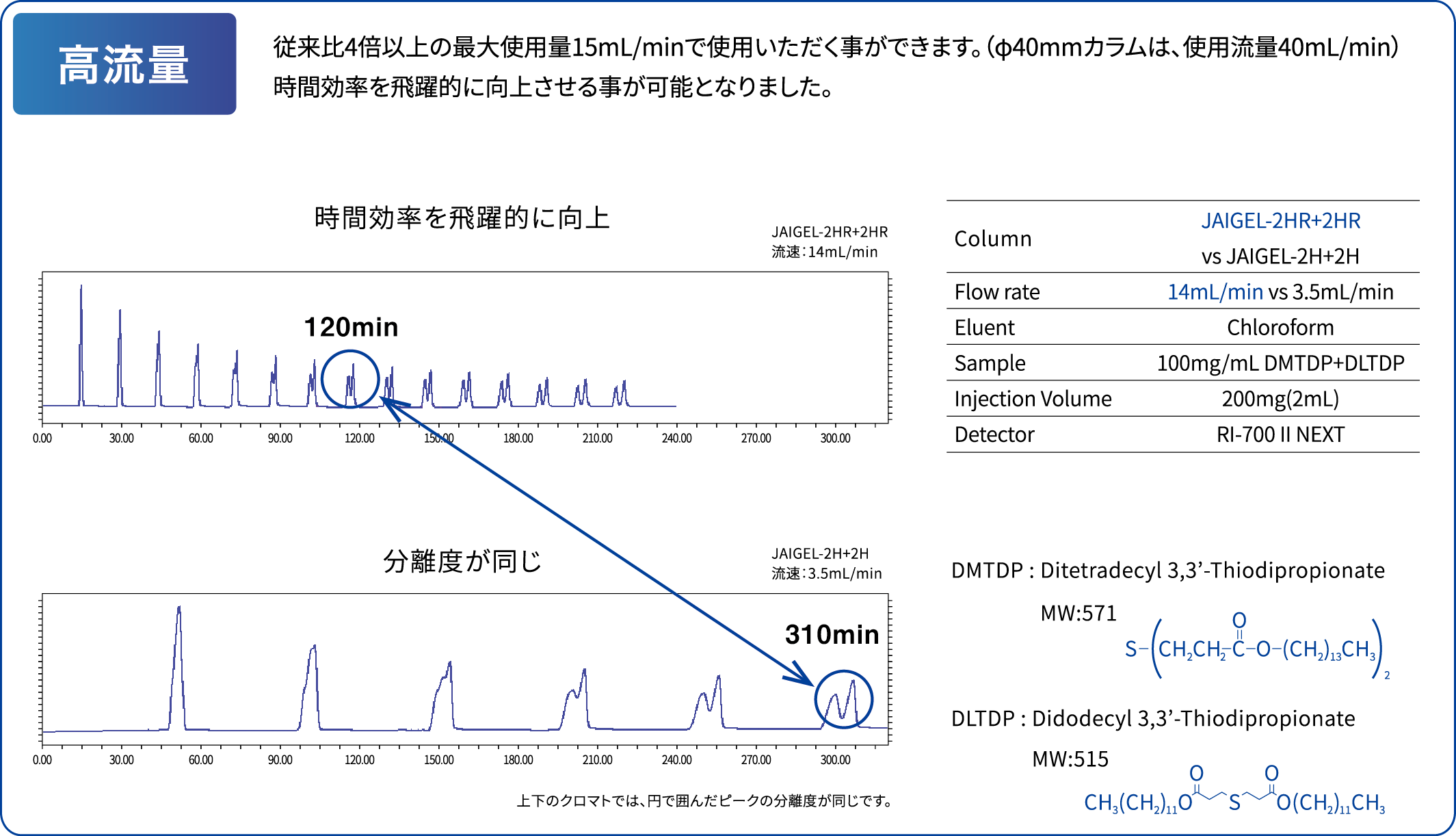

The original JAIGEL-H series has used flow rate at 3.5 mL/min and the new JAIGEL-HR series has 4 times faster flow rate at 15 mL/min maximum.

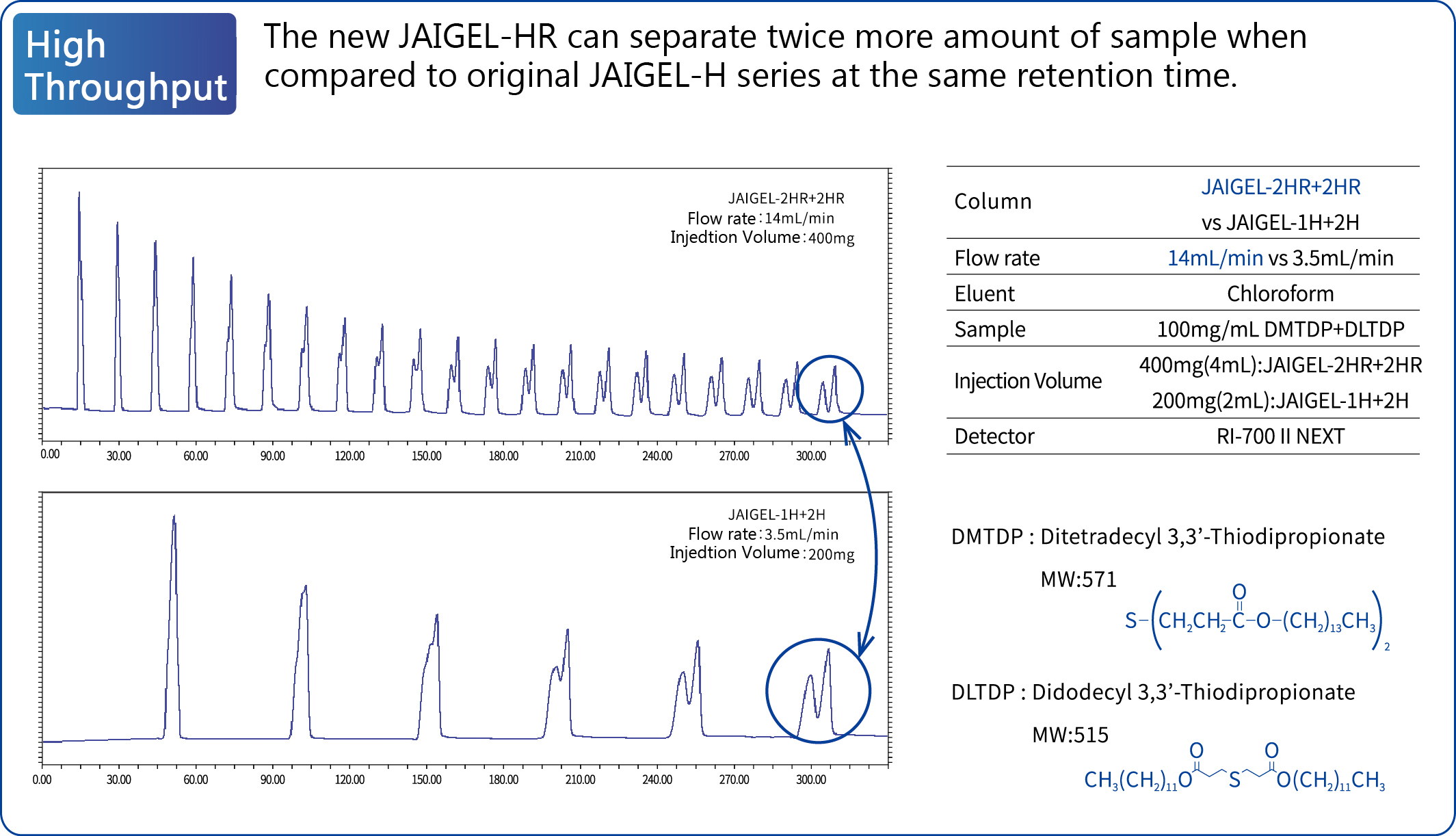

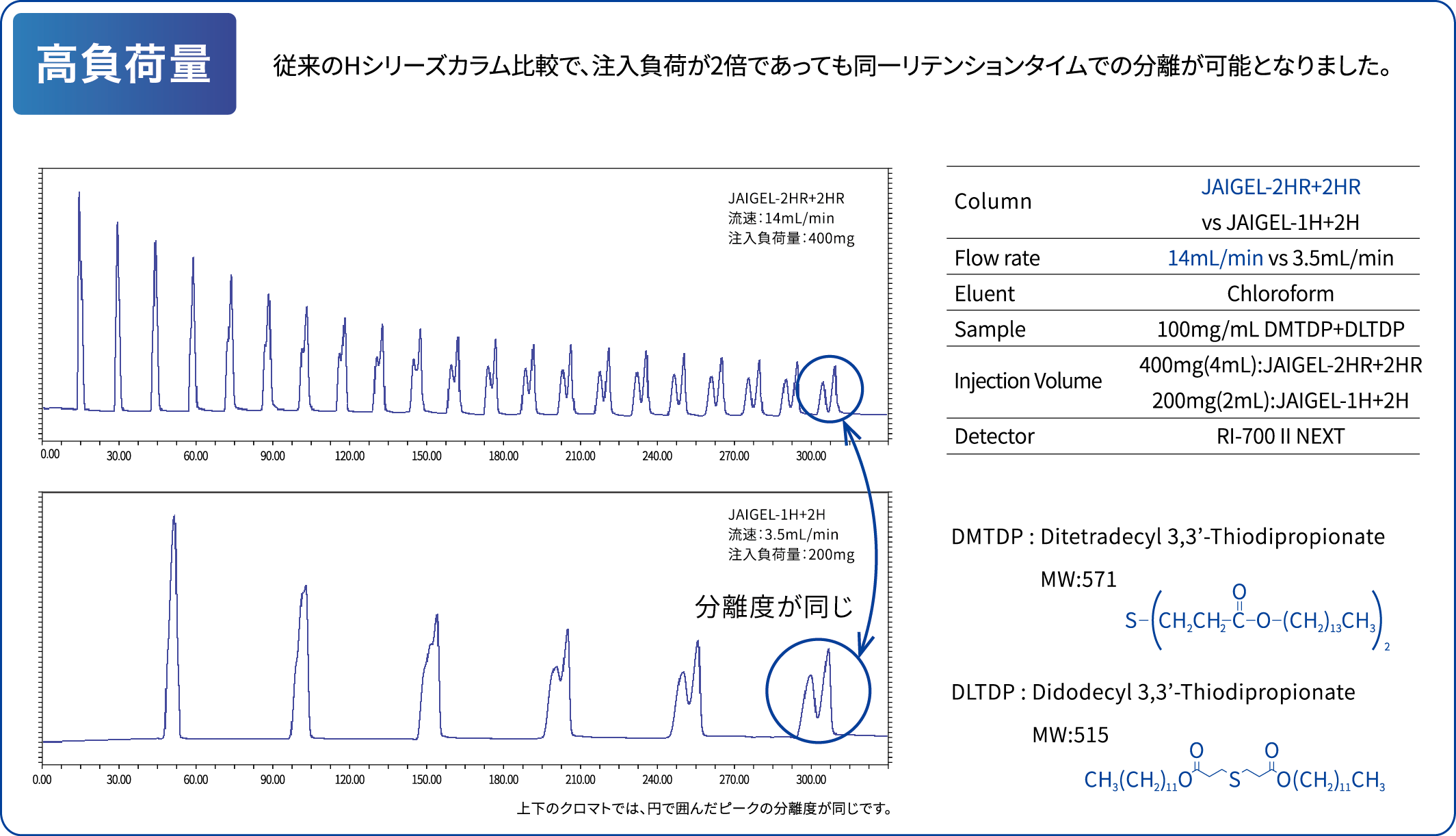

It also has higher throughput and higher resolution that increase amount of sample per injection.

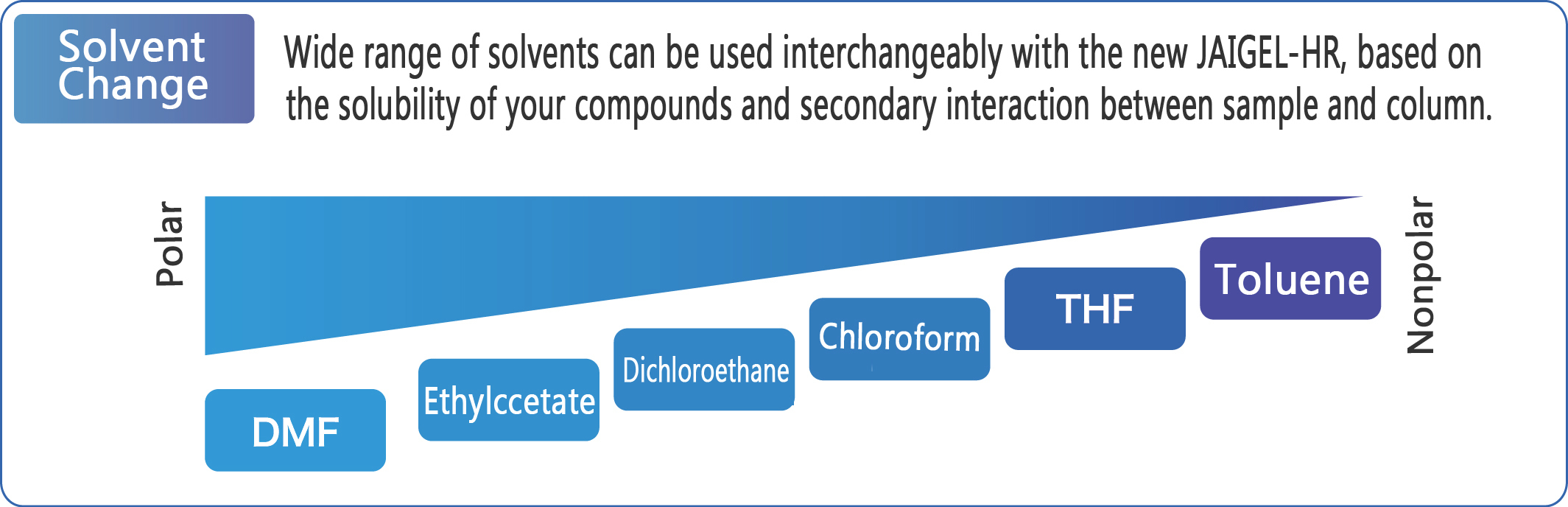

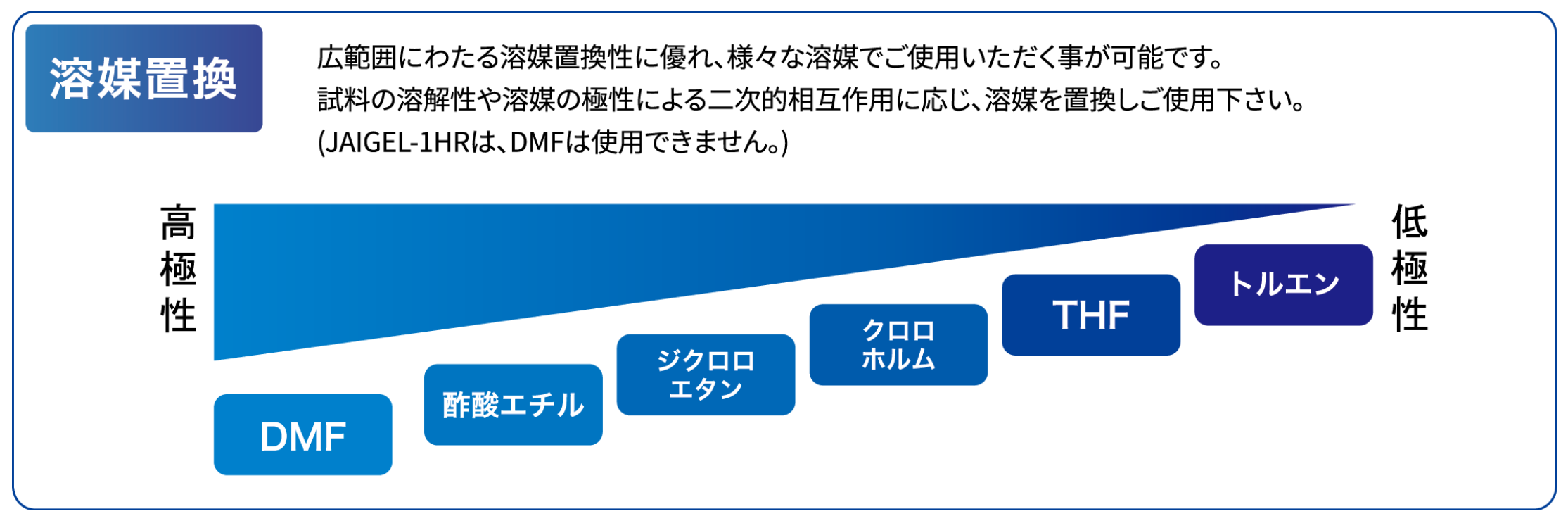

In addtion, it has capability of solvent interchangeability.
Standard packed solvent : Chloroform
Possible solvent to use : DMF, Ethylacetate, Dichloroethane, Chloroform, Toluene, etc
* DMF can be used in JAIGEL-2HR 2.5HR 3HR 4HR and 5HR. However, DMF is not compatible with 1HR.
HR series column models
Item model | Exclusion limit (PS equivalent) |
Preparative column | Pre-column | ||
ID 20mm | ID 40mm | ID 8mm | ID 20mm | ||
Length 600mm | Length 600mm | Length 40mm | Length 50mm | ||
JAIGEL-1HR | 1,000 | 1HR (>24,000) |
- | JAIGEL-HR-P for ID 20 |
JAIGEL-HR-40P for ID 40 |
JAIGEL-2HR | 5,000 | 2HR (>28,000) |
2HR-40 (>24,000) |
||
JAIGEL-2.5HR | 20,000 | 2.5HR (>28,000) |
2.5HR-40 (>24,000) |
||
JAIGEL-3HR | 70,000 | 3HR (>24,000) |
- | ||
JAIGEL-4HR | 500,000 | 4HR (>24,000) |
- | ||
JAIGEL-5HR | 5,000,000 | 5HR Please ask |
- |
Pre-column
Precolumn is a guard column to protect performance and efficiency of preparative column.
It is placed before main columns and has similar fillers as JAIGEL-HR series.
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm | 10 | 15 |
40mm | 40 |
High speed Organic GPC Columns (Chloroform or THF)
JAIGEL-HH Series
The original organic GPC JAIGEL-H series columns can now flow at 7.5 mL/min and become JAIGEL-HH series, that is twice faster than H series.
JAIGEL-HH series have the exact same packing material that have been well received for many years.
Twice as fast flow rate makes the retention time only half the time it used to take.
Standard packed solvent : Chloroform or THF
The JAIGEL-HH series can not change solvents from the packed solvent at factory.
Theoretical plate guarantee for 6 months. After 6 months from installation, if the theoretical plate drops lower than 13,000, repacking or replacement will be offered.
HH series column models
Item model | Exclusion iimit (PS equivalent) |
Preparative column | Pre-column | |
ID 20mm | ID 8mm | ID 20mm | ||
Length 600mm | Length 40mm | Length 50mm | ||
JAIGEL-1HH | 1,000 | 1HH (>13,000) | JAIGEL-HH-P for ID 20 |
JAIGEL-HH-40P for ID 40 |
JAIGEL-2HH | 5,000 | 2HH (>13,000) | ||
JAIGEL-2.5HH | 20,000 | 2.5HH (>13,000) | ||
JAIGEL-3HH | 70,000 | 3HH (>13,000) | ||
JAIGEL-4HH | 500,000 | 4HH (>13,000) | ||
JAIGEL-5HH | 5,000,000 | 5HH (Please ask) |
Pre-column
Precolumn is a guard column to protect performance and efficiency of preparative column.
It is placed before main columns and has similar fillers as JAIGEL-HH series.
Flow rate
ID | Max. flow rate (ml/min) |
20mm | 7.5 |
Original GPC Columns
JAIGEL-H Series
This is a classic highly cross-linked polystyrene/divinylbenzene (PS/DVB) packed column.
Maximum sample amount of injection at a time is up to 300mg with 2 set of JAIGEL-H columns connected in series.
JAIGEL-H-40 has wider inner diameter (40mm) and 4 times more sample amount can be injected at a time.
JAIGEL-H series are very robust and can last for many years.
Standard set up : Connecting two columns in series (Best suits for recycling)
Standard packed solvent : Chloroform or THF
Theoritical plate gurantee for 6 months. After 6 months from installation, if the theoritical plate drops lower than 13,000, repacking or replacement will be offered.
Other possible filling solvent : Experienced in packing in toluene, DMF, Dichloroethane. Please feel free to ask for more details.
H series column models
Item model | Exclusion limit (PS equivalent) |
Preparative column | Analytical column | Larger scale prep. column |
|
ID 20mm | ID 40mm | ID 8mm | ID 100mm | ||
Length 600mm | Length 600mm | Length 500mm | Length 600mm | ||
JAIGEL-1H | 1,000 | 1H (>13,000) |
1H-40 (>10,000) |
1H-A (>16,000) |
---------- |
JAIGEL-2H | 5,000 | 2H (>13,000) |
2H-40 (>10,000) |
2H-A (>16,000) |
2H-100 (>10,000) |
JAIGEL-2.5H | 20,000 | 2.5H (>13,000) |
2.5H-40 (>10,000) |
2.5H-A (>16,000) |
2.5H-100 (>10,000) |
JAIGEL-3H | 70,000 | 3H (>13,000) |
3H-40 (>10,000) |
3H-A (>16,000) |
---------- |
JAIGEL-4H | 500,000 | 4H (>13,000) |
4H-40 (>6,500) |
4H-A (>15,000) |
---------- |
JAIGEL-5H | 5,000,000 | 5H Please ask |
5H-40 Please ask |
5H-A (>15,000) |
---------- |
JAIGEL-6H | 50,000,000 | 6H Please ask |
6H-40 Please ask |
6H-A Please ask |
---------- |
JAIGEL-MH | 20,000,000 | MH Please ask |
---------- | MH-A Please ask |
---------- |
Pre-column
Precolumn is a guard column to protect performance and efficiency of preparative column.
It is placed before main columns and has similar fillers as JAIGEL-H series.
Type | ID × Length | Designed for use with |
JAIGEL-HH-P | 8×40mm | Each series of H, HH, H-A |
JAIGEL-HH-40P | 20×50mm | H-40 series |
JAIGEL-H-100P | 40×50mm | H-100 series |
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm | 3.5 | 4.0 |
40mm | 9.0~14.0 | 16.0 |
8mm | 1.0 | 1.6 |
Aqueous and polar solvent SEC Columns
Polyvinyl Alcohol (PVA) polymer packed
JAIGEL-GS Series
It can be used with wide range of solvents, in particular water and polar solvents but also possible to use non polar solvents as well.
Shipping solvent : Water
Analytical column (ID 7.5 x 300 mm)
Flow rate (mL/min) : Regular use at 0.4 - 0.6 mL/min, Maximum at 1.0 mL/min
Pre-column (ID 7.5 x 50 mm) for both analytical and preparative columns
JAIGEL-GS220 -> JAIGEL-GS-P2 or P1 (See above chart)
GS series column models
Item model | Exclusion Limit (Pullulan equivalent) |
Preparative column |
Large scale prep.column | Analytical column | pH range | Pre-column | Applications | |
ID 20mm | ID 50mm | |||||||
Length 500mm | Length 300mm | Length 500mm |
||||||
JAIGEL-GS220 | 3,000 | GS220 (>12,000) |
-F (>7,000) |
---------- | -A (>16,000) |
2 - 9 | -P2 | Peptides, water soluble oligomers, small saccharies |
JAIGEL-GS310 | 40,000 | GS310 (>12,000) |
-F (>7,000) |
-50(>8,000) | -A (>16,000) |
2 - 9 | -P1 | Peptides, steroids |
JAIGEL-GS320 | 40,000 | GS320 (>12,000) |
-F (>7,000) |
---------- | -A (>16,000) |
2 - 12 | -P2 | Nucleic acids, peptides, saccharides, hormones |
JAIGEL-GS510 | 300,000 | GS510 (>12,000) |
-F (>7,000) |
-50(>8,000) | -A (>16,000) |
2 - 9 | -P1 | Hydrophobic polymers, proteins, nucleotide |
JAIGEL-GS520 | 300,000 | GS520 (>12,000) |
-F (>7,000) |
---------- | -A (>15,000) |
2 - 12 | -P2 | Proteins in blood, oligo-saccharides, albumin, nucleotides |
JAIGEL-GS620 | 2,000,000 | GS620 (>12,000) |
-F (>7,000) |
---------- | -A (>15,000) |
2 - 9 | -P2 | Proteins, gelatins, nucleotides, oligo-saccharides |
JAIGEL-GS710 | 1×10⁷ | GS710 (>12,000) |
-F (>7,000) |
-50(>8,000) | -A (>10,000) |
2 - 9 | -P1 | Hydrophilic and hydrophobic polymers |
JAIGEL-GSM700 | 1×10⁷ | GSM700 (>12,000) |
-F (>7,000) |
---------- | -A (>11,000) |
2 - 9 | -P1 | Hydrophilic and hydrophobic polymers |
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm (310, 320, 510) | 5 - 8 | 12 |
20mm (220, 520, 620) | 4 - 6 | 8 |
20mm (710, M700) | 2 - 3 | 4 |
Possible solvent
Solvent | Column | GS310, GS510, GS710, GSM700 |
GS320, GS520 |
GS220, GS620 |
Concentration | ||||
Auesous solution | 0 - 0.5M | ✔ |
✔ | ✔ |
Methanol | 0 - 100% | ✔ | ✔ | Below 30% |
Ethanol | 0 - 100% | ✔ | ✔ | Below 30% |
Acetonitrile | 0 - 50% | ✔ | ✔ | ✔ |
51 - 100% | ✔ | N/A | N/A | |
THF, DMF, Acetone, Chroloform, Ethyl acetate |
0 - 100% | ✔ | ||
DMSO | 0 - 50% | ✔ | ||
51 - 100% | N/A |
Aqueous and polar solvent SEC Columns
Methacrylate polymer packed
JAIGEL-W Series
It can apply for wide range of applications, using acidic and alkaline solvent.
Possible solvent : Water (pH3 to pH10), Methanol, Ethanol, Acetonitrile,THF, CHCl3, DMF, NMP
Methanol can be used in W-252, 253, 254, 255 and 256 with no restriction, however with W-251, it can be used up to 30% only.
W series column models
Item model | Exclusion limit (Pullulan equivalent) |
Preparative column | Analytical column | Applications | |
ID 20mm |
ID 40mm |
ID 10.7mm |
|||
Length 500mm | Length 600mm | Length 300mm | |||
JAIGEL-W251 | 2,000 | W251 (>13,000) |
W251-40 (>10,000) |
W251-A (>13,000) |
Water solube, low molecular weight compounds and oligomer |
JAIGEL-W252 | 6,000 | W252 (>13,000) |
W252-40 (>10,000) |
W252-A (>13,000) |
|
JAIGEL-W253 | 50,000 | W253 (>13,000) |
W253-40 (>10,000) |
W253-A (>13,000) |
Peptides, Proteins, Water soluble polymers |
JAIGEL-W254 | 400,000 | W254 (>13,000) |
W254-40 Please ask |
W254-A (>13,000) |
|
JAIGEL-W255 | 2,000,000 | W255 (>13,000) |
---------- | W255-A (>13,000) |
|
JAIGEL-W256 | 5×10⁷ |
W256 Please ask |
---------- | W256-A (>13,000) |
Pre-column
Item model | ID × Length | Designed for use with |
JAIGEL-W-P | 7.8×40mm | Each series of W, W-A |
JAIGEL-W-40P | 20×50mm | W-40 series |
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm | 3.5 | 5.5 |
40mm | 14.0 | 20.0 |
10.7mm | 1.0 | 1.5 |
Silica based reverse phase columns
JAIGEL-ODS Series
Item model | Suffix | Particle size (μm) | Pore size (Å) |
Surface area (m2/g) |
Purity | Carbon content (%) |
End capping | Note |
JAIGEL-ODS-AP | SP-120-15 | 15 | 120 | 300 | High | 17 | Yes | Reversed phase column for general use. ODS is bonded to high purity silica gel resulting in high carbon coverage. |
SP-120-10 | 10 | |||||||
JAIGEL-ODS-BP | SP-120-15 | 15 | 120 | 300 | High | 15 | Yes | Reversed phase column for hydrophilic compounds, i.e.peptides, nucleotides, organic acids and herbal medicine. |
SP-120-10 | 10 | |||||||
JAIGEL-TMS | SH-143-15 | 10/20 | 120 | 300 | High | 4 | No | 120Å high purity silica gel methylated to create a phase with intermediate polarity for analysis of extremely hydrophobic compounds using conventional reversed-phase solvents and highly polar compounds using highly aqueous solvents. |
SH-143-10 | 10 |
Type | JAIGEL | Pre-column | JAIGEL | Pre-column | ||
-ODS-AP (or BP) |
ID × Length (mm) | -TMS | ID × Length (mm) | |||
Analytical column | -A | 6.0×250 | -AP (6.0×35) |
-A | 6.0×150 | -AP (5.0×10) |
Preparative column | - | 20.0×250 | -P (20.0×50) |
- | 20.0×250 | -P (20.0×50) |
-L | 20.0×500 | -L | 20.0×500 | |||
Large scale preparative column |
-30 | 30.0×250 | -30P (30.0×50) | -30 | 30.0×250 | -30P (30.0×50) |
-50 | 50.0×250 | -50P (50.0×50) | -50 | 50.0×250 | -50P (50.0×50) |
Polymer based reverse phase, normal phase columns
Item model | Packed material | Bond, Ligand | Packed solvent | Applications |
JAIGEL-NH2P | PVA | Amino- | Water | The packing material has amino bond. It is suitable for separation of saccharides in normal phase. The column is also more durable than the silica based amino column. |
JAIGEL-ODP | Octadecyl- | |||
JAIGEL-C8P | Octyl- | The packing material has ODS, Octyl and Butyl bond. The polarity increases in the order: ODP
|
||
JAIGEL-C4P | Butyl- |
Type | Preparative column | Analytical column | |||
Dimensions (mm) : ID × Length (mm) | 28.0×300 | 20.0×300 | 10.0×250 | 4.6×250 | |
Model |
JAIGEL-NH2P | -30 (>7,500) | -20 (>7,500) | -10 (>7,500) | -A (>7,500) |
JAIGEL-ODP | -30 (>14,000) | -20 (>14,000) | -10 (>14,000) | -A (>14,000) | |
JAIGEL-C8P | - | - | -10 (>11,000) | -A (>11,000) | |
JAIGEL-C4P | - | - | -10 (>9,000) | -A (>9,000) | |
Flow rates mL/min : general (maximum) | 10.0 (15.0) | 5.0 (10.0) | 1.5 (3.0) | 1.0 (1.5) | |
Demensions of pre-Column(mm) : ID× Length | 20.0×100 | 20.0×100 | 7.5×10 | 4.6×10 |
Silica based normal phase columns
JAIGEL-SIL Series
Item model | Suffix | Particle size (μm) | Pore size (Å) |
Surface area (m2/g) |
Purity | Carbon conent (%) |
End capping | Note |
JAIGEL-SIL | SH-043-15 | 10/20 | 120 | 300 | High | - | - | Standard normal phase column packed with pore size 120Å silica gel. It has silanol as polar group and works as a normal phase column. |
SP-043-10 | 10 |
Type | Silica column | Pre-column | |
-SIL | ID × Length (mm) | ||
Analyical column | -A | 6.0 × 150 | -AP (6.0×35) |
Preparative column | - | 20.0 × 250 | -P (20.0×50) |
-L | 20.0 × 500 | ||
Large scale preparative column | -30 | 30.0 × 250 | -30P (30.0×50) |
-50 | 50.0 × 250 | -50P (50.0×50) |
Optical isomer separation columns (Packed particle size 5μm)
JAIGEL-OA Series
Item model | Type | Chiral component | Mode | Applications | Invered type |
JAIGEL-OA2000 | Amide | (R)-phenylglycine | NP | Ester, Aromatic, Carbonyl, Carboxylic, Hydroxyl, Alcohol | -OA2000S |
JAIGEL-OA2500 | (R)-1-naphthylglycine | RP | -OA2500S | ||
JAIGEL-OA2000-I | Amide | (R)-phenylglycine | NP | -OA2000S-I | |
JAIGEL-OA2500-I | (R)-1-naphthylglycine | RP | -OA2500S-I | ||
JAIGEL-OA3100 | Urea | (S)-valine | RP | Carboxylic acid, Amino acid (esp. Acylated-, Urethane-, Dansyl- Amino acid), Alcohol group | -OA3100R |
JAIGEL-OA3200 | (S)-tert-leucine | RP | -OA3200R | ||
JAIGEL-OA3300 | (R)-phenylglycine | RP | -OA3300S | ||
JAIGEL-OA4000 | (S)-valine, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and alcohol group, ester | -OA4000R | |
JAIGEL-OA4100 | (S)-valine, (R)-1-(a-naphthyl)ethylamine | NP | -OA4100R | ||
JAIGEL-OA4400 | (S)-proline, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and alcohol group, ester | -OA4400R | |
JAIGEL-OA4500 | (S)-proline, (R)-1-(a-naphthyl)ethylamine | NP | -OA4500R | ||
JAIGEL-OA4600 | (S)-tert-leucine, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and alcohol group, ester | -OA4600R | |
JAIGEL-OA4700 | (S)-tert-leucin, (R)-1-(a-naphthyl)ethylamine | NP | -OA4700R | ||
JAIGEL-OA4800 | (S)-indoline-2-carboxylic acid, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and Amino acid | - | |
JAIGEL-OA4900 | (S)-indoline-2-carboxylic acid, (R)-1-(a-naphthyl)ethylamine | NP | - | ||
JAIGEL-OA5000 | Ligand Exchange | (D)-penicillamine | RP | Amino acid, Oxyacid optical isomer | -OA5000L |
JAIGEL-OA5500 | (R)-2-amino-1, 1-bis(2-butoxy-5-tert-butylphenyl)-phenylpropanol-1 | RP | Aromatic primary amine, Amino alcohol, Amino acid optical isomer |
- | |
JAIGEL-OA6000 | (L)-tartaric acid, (R)-1-(a-naphthyl)ethylamine | RP | β-Amino acid, β-Oxyacid, Amino alcohol group | -OA6000R | |
JAIGEL-OA6100 | (L)tartaric acid, (S)-valine, (S)-1-(a-naphthyl)ethylamide | RP | -OA6100R | ||
JAIGEL-OA7000 | Chemical Bond | β-cyclodextrin, sugar chain | RP | Aromatic, Aliphatic ketone, Amino alcohol group | - |
JAIGEL-OA7100 | β-cyclodextrin, alkyl chain | RP | - | ||
JAIGEL-OA7500 | Methylated-β-cyclodextrin,alkyl chain | RP | Aromatic, Aromatic alcohol | - | |
JAIGEL-OA8000 | Chiral crown ether | RP/NP | Chiral amine, Amino acid, Amino alcohol group | - |
OA series colum models
Model | Preparativec column ID (mm) × Length (mm) |
Analytical column ID (mm) × Length (mm) |
Pre-column ID (mm) × Length (mm) |
||
OA2000 - OA4000 | -20 (20.0×250) |
-10 (10.0×250) |
-8 (8.0×250) |
-4 (4.6×250) |
-P (4.0×10) |
OA5000 - OA6100 | -20 (20.0×150) |
-10 (10.0×150) |
-8 (8.0×150) |
-4 (4.6×150) |
-P (4.0×10) |
OA7000 - OA8000 | - | - | - | -4 (4.6×250) |
- |
Fullerene separation column(NACALAI TESQUE,INC.)
BUCKYPREP Series
Buckyprep series is specially designed for fullerene separation.
This is a most suitable column with its high performance as it takes 10 times larger quantity of sample at a time and complete separation within half of the time GPC columns generally take.
For fullerene separation, Buckyprep column with our recycling preparative HPLC is the world benchmark of HPLC column.
BUCKYPREP series colum models
Item model | ID × Lenght | Pre-column | ID × Lenght | Applications |
COSMOSIL Buckyprep packed column | 20 × 250mm | Buckyprep guard column | 20 × 50mm | Fullerene, Derivatized fullerene |
28 × 250mm | 28 × 50mm | |||
50 × 250mm | 50 × 50mm | |||
COSMOSIL Buckyprep-M packed column | 20 × 250mm | Buckyprep-M guard column | 20 × 50mm | Endohedral metall of fullerene |
28 × 250mm | 28 × 50mm | |||
50 × 250mm | 50 × 50mm |
High speed and solvent interchangeable organic GPC Columns
JAIGEL-HR Series
JAIGEL-H series columns have an established reputation and now have a new generation called JAIGEL-HR.
Standard packed solvent : Chloroform
Possible solvent to use : DMF, Ethylacetate, Dichloroethane, Chloroform, Toluene, etc
* DMF can be used in JAIGEL-2HR 2.5HR 3HR 4HR and 5HR. However, DMF is not compatible with 1HR.
It also has higher throughput and higher resolution that increase amount of sample per injection.

HR series column models
Item model |
Exclusion limit (PS equivalent) |
Preparative column | Pre-column | ||
ID 20mm | ID 40mm | ID 8mm | ID 20mm | ||
Length 600mm |
Length 600mm |
Length 40mm |
Length 50mm |
||
JAIGEL-1HR | 1,000 | 1HR (>24,000) |
- | JAIGEL-HR-P | JAIGEL-HR-40P |
JAIGEL-2HR | 5,000 | 2HR (>28,000) |
2HR-40 (>24,000) |
||
JAIGEL-2.5HR | 20,000 | 2.5HR (>28,000) |
2.5HR-40 (>24,000) |
||
JAIGEL-3HR | 70,000 | 3HR (>24,000) |
- | ||
JAIGEL-4HR | 500,000 | 4HR (>24,000) |
- | ||
JAIGEL-5HR | 5×10⁶ | 5HR (Please ask) |
- |
Pre-column
Precolumn is a guard column to protect performance and efficiency of preparative column.
It is placed before main columns and has similar fillers as JAIGEL-HR series.
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm | 10 | 15 |
40mm | 40 |
High speed Organic GPC Columns (Chloroform or THF)
JAIGEL-HH Series
The original organic GPC JAIGEL-H series columns can now flow at 7.5 mL/min and become JAIGEL-HH series, that is twice faster than H series.
JAIGEL-HH series have the exact same packing material that have been well received for many years.
Twice as fast flow rate makes the retention time only half the time it used to take.
Standard packed solvent : Chloroform or THF
The JAIGEL-HH series can not change solvents from the packed solvent at factory.
Theoretical plate guarantee for 6 months. After 6 months from installation, if the theoretical plate drops lower than 13,000, repacking or replacement will be offered.
HH series column models
Item model | Exclusion iimit (PS equivalent) |
Preparative column | Pre-column | |
ID 20mm | ID 8mm | ID 20mm | ||
Length 600mm | Length 40mm | Length 500mm | ||
JAIGEL-1HH | 1,000 | 1HH (>13,000) |
JAIGEL-HH-P for ID 20 |
JAIGEL-HH-40P for ID 40 |
JAIGEL-2HH | 5,000 | 2HH (>13,000) |
||
JAIGEL-2.5HH | 20,000 | 2.5HH (>13,000) |
||
JAIGEL-3HH | 70,000 | 3HH (>13,000) |
||
JAIGEL-4HH | 500,000 | 4HH (>13,000) |
||
JAIGEL-5HH | 5×10⁶ | 5HH (Please ask) |
Pre-column
Precolumn is a guard column to protect performance and efficiency of preparative column.
It is placed before main columns and has similar fillers as JAIGEL-HH series.
Flow rate
ID | Max. flow rate (ml/min) |
20mm | 7.5 |
Original GPC Columns
JAIGEL-H Series
This is a classic highly cross-linked polystyrene/divinylbenzene (PS/DVB) packed column.
Maximum sample amount of injection at a time is up to 300mg with 2 set of JAIGEL-H columns connected in series.
JAIGEL-H-40 has wider inner diameter (40mm) and 4 times more sample amount can be injected at a time.
JAIGEL-H series are very robust and can last for many years.
Standard set up : Connecting two columns in series (Best suits for recycling)
Standard packed solvent : Chloroform or THF. Theoritical plate gurantee for 6 months. After 6 months from installation, if the theoritical plate drops lower than 13,000, repacking or replacement will be offered.
Other possible filling solvent : Experienced in packing in toluene, DMF, Dichloroethane. Please feel free to ask for more details.
H series column models
Item model |
Exclusion limit (PS equivalent) |
Preparative column | Analytical column | Larger scale prep. column |
|
ID 20mm | ID 40mm | ID 8mm | ID 100mm | ||
Length 600mm | Length 600mm | Length 500mm | Length 600mm | ||
JAIGEL-1H | 1,000 | 1H (>13,000) |
1H-40 (>10,000) |
1H-A (>16,000) |
---------- |
JAIGEL-2H | 5,000 | 2H (>13,000) |
2H-40 (>10,000) |
2H-A (>16,000) |
2H-100 (>10,000) |
JAIGEL-2.5H | 2×10⁴ | 2.5H (>13,000) |
2.5H-40 (>10,000) |
2.5H-A (>16,000) |
2.5H-100 (>10,000) |
JAIGEL-3H | 7×10⁴ | 3H (>13,000) |
3H-40 (>10,000) |
3H-A (>16,000) |
---------- |
JAIGEL-4H | 5×10⁵ | 4H (>13,000) |
4H-40 (>6,500) |
4H-A (>15,000) |
---------- |
JAIGEL-5H | 5×10⁶ | 5H Please ask |
5H-40 Please ask |
5H-A (>15,000) |
---------- |
JAIGEL-6H | 5×10⁷ | 6H Please ask |
6H-40 Please ask |
6H-A Please ask |
---------- |
JAIGEL-MH | 2×10⁷ | MH Please ask |
---------- | MH-A Please ask |
---------- |
Pre-column
Precolumn is a guard column to protect performance and efficiency of preparative column.
It is placed before main columns and has similar fillers as JAIGEL-H series.
Type | ID × Length | Designed for use with |
JAIGEL-H-P | 8×40mm | Each series of H, HH, H-A |
JAIGEL-H-40P | 20×50mm | H-40 series |
JAIGEL-H-100P | 40×50mm | H-100 series |
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm | 3.5 | 4.0 |
40mm | 9.0 - 14.0 | 16.0 |
8mm | 1.0 | 1.6 |
Aqueous and polar solvent SEC Columns
Polyvinyl Alcohol (PVA) polymer packed
JAIGEL-GS Series
It can be used with wide range of solvents, in particular water and polar solvents but also possible to use non polar solvents as well.
Shipping solvent : Water
Analytical column (ID 7.5 x 300 mm)
Flow rate (mL/min) : Regular use at 0.4 - 0.6 mL/min, Maximum at 1.0 mL/min
Pre-column (ID 7.5 x 50 mm) for both analytical and preparative columns
JAIGEL-GS220 -> JAIGEL-GS-P2 or P1 (See above chart)
GS series column models
Preparative column
Item model | Exclusion Limit (Pullulan equivalent) |
Preparative column |
Large scale prep.column | pH range | Pre-column | Applications | |
ID 20mm | ID 50mm | ||||||
Length 500mm |
Length 300mm |
Length 500mm |
|||||
JAIGEL-GS220 | 3,000 | GS220 (>12,000) |
-F (>7,000) |
---------- | 2 - 9 | -P2 | Peptides, water soluble oligomers, small saccharies |
JAIGEL-GS310 | 40,000 | GS310 (>12,000) |
-F (>7,000) |
-50 (>8,000) |
2 - 9 | -P1 | Peptides, steroids |
JAIGEL-GS320 | 40,000 | GS320 (>12,000) |
-F (>7,000) |
---------- | 2 - 12 | -P2 | Nucleic acids, peptides, saccharides, hormones |
JAIGEL-GS510 | 3×10⁵ | GS510 (>12,000) |
-F (>7,000) |
-50 (>8,000) |
2 - 9 | -P1 | Hydrophobic polymers, proteins, nucleotide |
JAIGEL-GS520 | 3×10⁵ | GS520 (>12,000) |
-F (>7,000) |
---------- | 2 - 12 | -P2 | Proteins in blood, oligo-saccharides, albumin, nucleotides |
JAIGEL-GS620 | 2×10⁶ | GS620 (>12,000) |
-F (>7,000) |
---------- | 2 - 9 | -P2 | Proteins, gelatins, nucleotides, oligo-saccharides |
JAIGEL-GS710 | 1×10⁷ | GS710 (>12,000) |
-F (>7,000) |
-50 (>8,000) |
2 - 9 | -P1 | Hydrophilic and hydrophobic polymers |
JAIGEL-GSM700 | 1×10⁷ | GSM700 (>12,000) |
-F (>7,000) |
---------- | 2 - 9 | -P1 | Hydrophilic and hydrophobic polymers |
Analytical column
Item model | Exclusion Limit (Pullulan equivalent) |
Analytical column | pH range | Pre-column | Applications |
JAIGEL-GS220 | 3,000 | -A (>16,000) |
2 - 9 | -P2 | Peptides, water soluble oligomers, small saccharies |
JAIGEL-GS310 | 40,000 | -A (>16,000) |
2 - 9 | -P1 | Peptides, steroids |
JAIGEL-GS320 | 40,000 | -A (>16,000) |
2 - 12 | -P2 | Nucleic acids, peptides, saccharides, hormones |
JAIGEL-GS510 | 3×10⁵ | -A (>16,000) |
2 - 9 | -P1 | Hydrophobic polymers, proteins, nucleotide |
JAIGEL-GS520 | 3×10⁵ | -A (>15,000) |
2 - 12 | -P2 | Proteins in blood, oligo-saccharides, albumin, nucleotides |
JAIGEL-GS620 | 2×10⁶ | -A (>15,000) |
2 - 9 | -P2 | Proteins, gelatins, nucleotides, oligo-saccharides |
JAIGEL-GS710 | 1×10⁷ | -A (>10,000) |
2 - 9 | -P1 | Hydrophilic and hydrophobic polymers |
JAIGEL-GSM700 | 1×10⁷ | -A (>11,000) |
2 - 9 | -P1 | Hydrophilic and hydrophobic polymers |
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm (310, 320, 510) | 5 - 8 | 12 |
20mm (220, 520, 620) | 4 - 6 | 8 |
20mm (710, M700) | 2 - 3 | 4 |
Possible solvent
Solvent | Column | GS310, GS510, GS710, GSM700 |
GS320, GS520 |
GS220, GS620 |
Concentration | ||||
Auesous solution | 0 - 0.5M | ✔ | ✔ | ✔ |
Methanol | 0 - 100% | ✔ | ✔ | Below 30% |
Ethanol | 0 - 100% | ✔ | ✔ | Below 30% |
Acetonitrile | 0 - 50% | ✔ | ✔ | ✔ |
51 - 100% | ✔ | N/A | N/A | |
THF, DMF, Acetone, Chroloform, Ethyl acetate |
0 - 100% | ✔ | ||
DMSO | 0 - 50% | ✔ | ||
51 - 100% | N/A |
Aqueous and polar solvent SEC Columns
Methacrylate polymer packed
JAIGEL-W Series
It can apply for wide range of applications, using acidic and alkaline solvent.
Possible solvent : Water (pH3 to pH10), Methanol, Ethanol, Acetonitrile,THF, CHCl3, DMF, NMP
Methanol can be used in W-252, 253, 254, 255 and 256 with no restriction, however with W-251, it can be used up to 30% only.
W series column models
Item model | Exclusion limit (Pullulan equivalent) |
Preparative column | Analytical column | Applications | |
ID 20mm |
ID 40mm |
ID 10.7mm |
|||
Length 500mm | Length 600mm | Length 300mm | |||
JAIGEL-W251 | 2,000 | W251 (>13,000) |
W251-40 (>10,000) |
W251-A (>13,000) |
Water solube, low molecular weight compounds and oligomer |
JAIGEL-W252 | 6,000 | W252 (>13,000) |
W252-40 (>10,000) |
W252-A (>13,000) |
|
JAIGEL-W253 | 50,000 | W253 (>13,000) |
W253-40 (>10,000) |
W253-A (>13,000) |
Peptides, Proteins, Water soluble polymers |
JAIGEL-W254 | 4×10⁵ | W254 (>13,000) |
W254-40 Please ask |
W254-A (>13,000) |
|
JAIGEL-W255 | 2×10⁶ | W255 (>13,000) |
---------- | W255-A (>13,000) |
|
JAIGEL-W256 | 5×10⁷ |
W256 Please ask |
---------- | W256-A (>13,000) |
Pre-column
Item model | ID × Length | Designed for use with |
JAIGEL-W-P | 7.8×40mm | Each series of W, W-A |
JAIGEL-W-40P | 20×50mm | W-40 series |
Flow rate
ID | Flow rate (ml/min) | |
Regular use | Maximum | |
20mm | 3.5 | 5.5 |
40mm | 14.0 | 20.0 |
10.7mm | 1.0 | 1.5 |
Silica based reverse phase columns
JAIGEL-ODS Series
Item model | Suffix | Particle size (μm) |
Pore size (Å) |
Surface area (m2/g) |
Purity | Carbon content (%) |
End capping | Note |
JAIGEL-ODS-AP | SP-120-15 | 15 | 120 | 300 | High | 17 | YES | Reversed phase column for general use. ODS is bonded to high purity silica gel resulting in high carbon coverage. |
SP-120-10 | 10 | |||||||
JAIGEL-ODS-BP | SP-120-15 | 15 | 120 | 300 | High | 15 | YES | Reversed phase column for hydrophilic compounds, i.e.peptides, nucleotides, organic acids and herbal medicine. |
SP-120-10 | 10 | |||||||
JAIGEL-TMS | SH-143-15 | 10/20 | 120 | 300 | High | 4 | NO | 120Å high purity silica gel methylated to create a phase with intermediate polarity for analysis of extremely hydrophobic compounds using conventional reversed-phase solvents and highly polar compounds using highly aqueous solvents. |
SH-143-10 | 10 |
Type | JAIGEL | Pre-column | JAIGEL | Pre-column | ||
-ODS-AP (or BP) |
ID × Length (mm) |
-TMS | ID × Length (mm) |
|||
Analytical column | -A | 6.0×250 | -AP (6.0×35) |
-A | 6.0×150 | -AP (5.0×10) |
Preparative column | - | 20.0×250 | -P (20.0×50) |
- | 20.0×250 | -P (20.0×50) |
-L | 20.0×500 | -L | 20.0×500 | |||
Large scale preparative column | -30 | 30.0×250 | -30P (30.0×50) |
-30 | 30.0×250 | -30P (30.0×50) |
-50 | 50.0×250 | -50P (50.0×50) |
-50 | 50.0×250 | -50P (50.0×50) |
Polymer based reverse phase, normal phase columns
Item model | Packed material | Bond, Ligand | Packed solvent | Applications |
JAIGEL-NH2P | PVA | Amino- | Water | The packing material has amino bond. It is suitable for separation of saccharides in normal phase. The column is also more durable than the silica based amino column. |
JAIGEL-ODP | Octadecyl- | |||
JAIGEL-C8P | Octyl- | The packing material has ODS, Octyl and Butyl bond. The polarity increases in the order: ODP
|
||
JAIGEL-C4P | Butyl- |
Type | Preparative column | Analytical column | |||
Dimensions (mm) : ID × Length (mm) | 28.0×300 | 21.5×300 | 10.0×250 | 4.6×250 | |
Model | JAIGEL-NH2P | -30 (>7,500) |
-20 (>7,500) |
-10 (>7,500) |
-A (>7,500) |
JAIGEL-ODP | -30 (>14,000) |
-20 (>14,000) |
-10 (>14,000) |
-A (>14,000) |
|
JAIGEL-C8P | - | - | -10 (>11,000) |
-A (>11,000) |
|
JAIGEL-C4P | - | - | -10 (>9,000) |
-A (>9,000) |
|
Flow rates mL/min : general (maximum) | 10.0 (15.0) |
5.0 (10.0) |
1.5 (3.0) |
1.0(1.5) | |
Demensions of pre-Column(mm) : ID× Length | 20.0×100 | 20.0×100 | 7.5×10 | 4.6×10 |
Silica based normal phase columns
Item model | Suffix | Particle size (μm) | Pore size (Å) |
Surface area (m2/g) |
Purity | Carbon conent (%) |
End capping | Note |
JAIGEL-SIL | SH-043-15 | 10/20 | 120 | 300 | High | - | NO | Standard normal phase column packed with pore size 120Å silica gel. It has silanol as polar group and works as a normal phase column. |
SP-043-10 | 10 |
Type | JAIGEL | Pre-column | |
-SIL | ID × Length (mm) | ||
Analyical column | -A | 6.0×150 | -AP (5.0×10) |
Preparative column | - | 20.0×250 | -P (20.0×50) |
-L | 20.0×500 | ||
Large scale preparative column | -30 | 30.0×250 | -30P (30.0×75) |
-50 | 50.0×250 | -50P (50.0×50) |
Optical isomer separation columns (Packed particle size 5μm)
Item model | Type | Chiral component | Mode | Applications | Invered type |
JAIGEL-OA2000 | Amide | (R)-phenylglycine | NP | Ester, Aromatic, Carbonyl, Carboxylic, Hydroxyl, Alcohol | -OA2000S |
JAIGEL-OA2500 | (R)-1-naphthylglycine | RP | -OA2500S | ||
JAIGEL-OA2000-I | (R)-phenylglycine | NP | -OA2000S-I | ||
JAIGEL-OA2500-I | (R)-1-naphthylglycine | RP | -OA2500S-I | ||
JAIGEL-OA3100 | Urea | (S)-valine | RP | Carboxylic acid, Amino acid (esp. Acylated-, Urethane-, Dansyl- Amino acid), Alcohol group | -OA3100R |
JAIGEL-OA3200 | (S)-tert-leucine | RP | -OA3200R | ||
JAIGEL-OA3300 | (R)-phenylglycine | RP | -OA3300S | ||
JAIGEL-OA4000 | (S)-valine, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and alcohol group, ester | -OA4000R | |
JAIGEL-OA4100 | S)-valine, (R)-1-(a-naphthyl)ethylamine | NP | -OA4100R | ||
JAIGEL-OA4400 | (S)-proline, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and alcohol group, ester | -OA4400R | |
JAIGEL-OA4500 | (S)-proline, (S)-1-(a-naphthyl)ethylamine | NP | -OA4500R | ||
JAIGEL-OA4600 | (S)-tert-leucine, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and alcohol group, ester | -OA4600R | |
JAIGEL-OA4700 | (S)-tert-leucine, (S)-1-(a-naphthyl)ethylamine | NP | -OA4700R | ||
JAIGEL-OA4800 | (S)-indoline-2-carboxylic acid, (S)-1-(a-naphthyl)ethylamine | NP | Amines, Amino Alcoholic drug and Amino acid | - | |
JAIGEL-OA4900 | (S)-indoline-2-carboxylic acid, (S)-1-(a-naphthyl)ethylamine | NP | - | ||
JAIGEL-OA5000 | Ligand Exchange | (D)-penicillamine | RP | Amino acid, Oxyacid optical isomer | -OA5000L |
JAIGEL-OA5500 | (R)-2-amino-1, 1-bis(2-butoxy-5-tert-butylphenyl)-phenylpropanol-1 | RP | Aromatic primary amine, Amino alcohol, Amino acid optical isomer |
- | |
JAIGEL-OA6000 | (L)-tartaric acid, (R)-1-(a-naphthyl)ethylamine | RP | β-Amino acid, β-Oxyacid, Amino alcohol group | -OA6000R | |
JAIGEL-OA6100 | (L)tartaric acid, (S)-valine, (S)-1-(a-naphthyl)ethylamide | RP | -OA6100R | ||
JAIGEL-OA7000 | Chemical Bond | β-cyclodextrin, sugar chain | RP | Aromatic, Aliphatic ketone, Amino alcohol group | - |
JAIGEL-OA7100 | β-cyclodextrin, alkyl chain | RP | - | ||
JAIGEL-OA7500 | Methylated-β-cyclodextrin,alkyl chain | RP | Aromatic, Aromatic alcohol | - | |
JAIGEL-OA8000 | Chiral crown ether | NP /RP | Chiral amine, Amino acid, Amino alcohol group | - |
OA series colum models
Model | Preparativec column ID (mm) × Length (mm) |
Analytical column ID (mm) × Length (mm) |
Pre-column ID (mm) × Length (mm) |
||
OA2000 - OA4000 | -20 (20.0×250) |
-10 (10.0×250) |
-8 (8.0×250) |
-4 (4.6×250) |
-P (4.0×10) |
OA5000 - OA6100 | -20 (20.0×150) |
-10 (10.0×150) |
-8 (8.0×150) |
-4 (4.6×150) |
-P (4.0×10) |
OA7000 - OA8000 | - | - | - | -4 (4.6×250) |
- |
Fullerene separation column(NACALAI TESQUE,INC.)
BUCKYPREP Series
Buckyprep series is specially designed for fullerene separation.
This is a most suitable column with its high performance as it takes 10 times larger quantity of sample at a time and complete separation within half of the time GPC columns generally take.
For fullerene separation, Buckyprep column with our recycling preparative HPLC is the world benchmark of HPLC column.
BUCKYPREP series colum models
Item model | ID × Lenght | Pre-column | ID × Lenght | Applications |
COSMOSIL Buckyprep Packed Column | 20×250mm | Buckyprep Guard Column | 20×50mm | Fullerene, Derivatized fullerene |
28×250mm | 28×50mm | |||
50×250mm | 50×50mm | |||
COSMOSIL Buckyprep-M Packed Column | 20×250mm | Buckyprep-M Guard Column | 20×50mm | Endohedral metall of fullerene |
28×250mm | 28×50mm | |||
50×250mm | 50×50mm |
