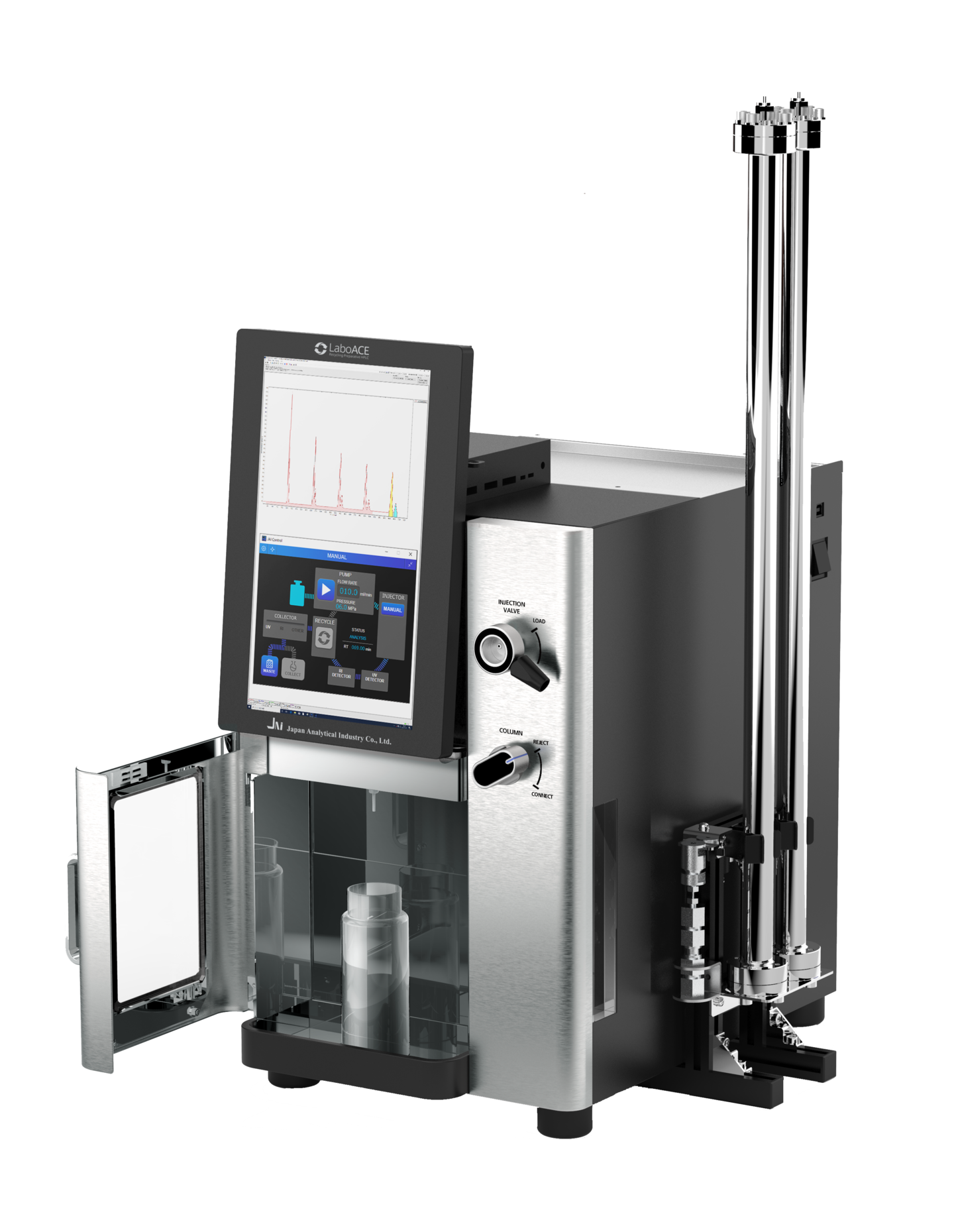

LaboACE LC-5060

LaboACE LC-5060

Standard Model

Standard Model


Manual Collection
LaboACE LC-5060 is a most popular Recycling Preprative HPLC system that dedicated to manual fraction collection. Start and stop of peak recycling separation can be made easily as desired just by a single click on "Recycle" button on the touch panel. LaboACE LC-5060 promises to make your purification steps simple, quick and easy, especially when separating different samples every time.

Small to fit inside a fume hood or on a benchtop
From injector to fraction collector, all necessary components are placed in the compact body. It is so compact as A3 size paper (two letter-size papers) that it is easy to set up inside a fume hood or place on a benchtop.

Recycling preparative chromatograph (patented)
The system is equipped with non-diffusion recycling system (patented) that prevents the sample from running back into solvent line, baseline shifting, broadening and damaging detectors with back pressure. It protects detectors, columns and your precious samples.

Auto Cleanup Function
It cleans inside the flow channels automatically. Auto cleanup function along with the patented non-diffusion recycling system prevent system residual contamination so that you can obtain ultra pure compounds with confidence. Solvent replacement can also be made much easily.

Reliable Solvent Delivery
With more than 50 years' experience of developing recycling technology, the system has JAI-made serial double plunger pump optimized for stable delivery and recycling performance. The recycling efficiency is greatly improved.

Right Fraction Timing
The time difference due to delay volume from sample detection to fraction is automatically calculated.


Compact body with minimized dead volume
Minimized internal dead volume and the newly developed non-diffusion recycling system prevent base line shifting and peak broadening.
Simple and Intuitive Operation interface

5.7 inch size touch panel screen allows anyone to operate LaboACE easily on the screen from solvent delivery to fraction.

Improving the ease of operation
Various functions are installed to use the instrument conveniently, such as pump stop timer that stops pump at desired time and bottle capacity that prevents fractionation from overflowing from vials.




Manual Collection
LaboACE LC-5060 is a most popular Recycling Preprative HPLC system that dedicated to manual fraction collection. Start and stop of peak recycling separation can be made easily as desired just by a single click on "Recycle" button on the touch panel. LaboACE LC-5060 promises to make your purification steps simple, quick and easy, especially when separating different samples every time.

Small to fit inside a fume hood or on a benchtop
From injector to fraction collector, all necessary components are placed in the compact body. It is so compact as A3 size paper (two letter-size papers) that it is easy to set up inside a fume hood or place on a benchtop.

Recycling preparative chromatograph (patented)
The system is equipped with non-diffusion recycling system (patented) that prevents the sample from running back into solvent line, baseline shifting, broadening and damaging detectors with back pressure. It protects detectors, columns and your precious samples.

Auto Cleanup Function
It cleans inside the flow channels automatically. Auto cleanup function along with the patented non-diffusion recycling system prevent system residual contamination so that you can obtain ultra pure compounds with confidence. Solvent replacement can also be made much easily.

Reliable Solvent Delivery
With more than 50 years' experience of developing recycling technology, the system has JAI-made serial double plunger pump optimized for stable delivery and recycling performance. The recycling efficiency is greatly improved.

Right Fraction Timing
The time difference due to delay volume from sample detection to fraction is automatically calculated.





Compact body with minimized dead volume
Minimized internal dead volume and the newly developed non-diffusion recycling system prevent base line shifting and peak broadening.





Simple and Intuitive Operation interface

5.7 inch size touch panel screen allows anyone to operate LaboACE easily on the screen from solvent delivery to fraction.

Improving the ease of operation
Various functions are installed to use the instrument conveniently, such as pump stop timer that stops pump at desired time and bottle capacity that prevents fractionation from overflowing from vials.

Detectors

Detectors

Two detectors can be fitted in the LaboACE series small body and can detect simultaneously.


UV Detector

Especially designed for recycling preparative HPLC with stability and high detection sensitivity.


  UV-254 LA UV-VIS 4ch 400LA UV-VIS 4ch 800LA
 Wavelength Fixed at 254 nm
Select wavelength as option
4ch variable
from 200 - 400 nm
4ch variable
from 200 - 800 nm
 Measurement method Single beam
 Flow cell Optical path length: 0.3 mm Volume: 45 μL
(Option : 1.4 mm and 2.4 mm)



Refractive Index Detector

It gives quick baseline stabilization and won't require much time before injection.
Applicable for both preparative and analytical HPLC.


   RI-700 LA
 Measurement method Deflection
 Flow cell Volume 8 μL
 RI range 1.00 - 1.75



Two detectors can be fitted in the LaboACE series small body and can detect simultaneously.

UV Detector
LaboACE series UV detectors are especially designed for recyling preparative HPLC with stability and high detection sensitivity.


  UV-254 LA UV-VIS 4ch 400LA UV-VIS 4ch 800LA
 Wavelength Fixed at 254 nm 4ch variable
from 200-400 nm
4ch variable
from 200-800 nm
 Measurement Single beam
 Flow cell Optical path length: 0.3mm Volume: 45μL (Option : 1.4 mm and 2.4 mm)

Refractive Index Detector
LaboACE series RI detector gives quick baseline stabilization and won't require much time before injection. It is applicable for both preparative and analytical HPLC.


   RI-700 LA
 Measurement Deflection
 Flow cell Volume 8 μL
 RI range 1.00 - 1.75

Chromatogram Data Acquisition Software


Chromatogram Data Acquisition Software

JAI Scan acquires up to 5 channels chromatographic information

  JAI Scan
 Number of channel 5
 PC interface USB2.0
 Auto zero Available
 Event signal Injection, Recycle and Fraction
 Start signal Synchronized with injection
 Operating environment JAI Scan software comes with a special PC.
 Data transfer CSV, cdf, mat etc.
 Absorption spectrum display Available with UV-VIS 4ch LA



JAI Scan acquires up to 5 channels chromatographic information


  JAI Scan
 Number of channel 5
 PC interface USB2.0
 Auto zero Available
 Event signal Injection, Recycle and Fraction
 Start signal Synchronized with injection
 Operating environment JAI Scan software comes with a special PC.
 Data transfer CSV, cdf, mat etc.
 Absorption spectrum display Available with UV-VIS 4ch LA

Specifications

Specifications



  LaboACE LC-5060
 Pump P-LA60
 Solvent delivery system Reciprocating serial double plunger
 Flow rate range 0.1 - 60.0 mL/min
 Maximum discharge pressure 20 MPa (0.1 - 15.0 mL/min)
 15 MPa (15.1 - 60.0 mL/min)
 Plunger  7.0 mm ID
 Stroke  8 mm
 Discharge rate per stroke  300 μL
 Gradient module Optional : Low pressure binary gradient.
It supports mixing two solvents isocratically for recycling separation.
 Variable injector (Manual)  Rheodyne 7725i
 Sample loop  10 mL as standard
 Repeat injector Optional
 Loop injector Not available
 Recycle system  With non-diffusion function recycling system (Patented)
 Recycle method Switching scheme of solenoid valve
 Auto program
 ・Event programming
 ・Auto fraction collection
 ・Auto replay
 ・Stacked injection


Not available


 Fraction collector Built-in single fraction nozzle
 Touch panel 5.7 inch LCD touch panel
 Pressure display and limiter Display and program on LCD touch panel
 Event signal  Injection, Recycle and Collect
 Auto cleanup To wash flow channel by auto program
 Pump stop timer  To stop pump at 0-999 mins
 Bottle capacity To stop pump at 0-999 mL when collecting and prevent from overflow
 Timer with alarm To set alarm at 0-999 mins
 Dimensions 280(W) x 445(H) x 420(D)
 Power supply   100V, 500VA/200-240V, 500VA
 Weight 18 Kg
 Column stand Option
 Solvent stand Option

 LaboACE LC-5060
 Pump P-LA60
 Solvent delivery system Reciprocating serial double plunger
 Flow rate range 0.1 - 60.0 mL/min
 Maximum discharge pressure 20 MPa(0.1 - 15.0 mL/min)
15 MPa(15.1 - 60.0 mL/min)
 Plunger 7.0 mm ID
 Stroke 8 mm
 Discharge rate per stroke 300 μL
 Gradient module Optional
 Variable injector (Manual) Rheodyne 7725i
 Sample loop 10 mL as standard
 Repeat injector Optional
 Loop injector Not available
 Recycle system With non-diffusion function recycling system (Patented)
 Recycle method Switching scheme of solenoid valve
Auto program
・Event programming
・Auto fraction collection
・Auto replay
・Stacked injection
Not available
 Fraction collector Built-in single fraction nozzle
 Touch panel 5.7 inch LCD touch panel
 Pressure display and limiter Display and program on LCD touch panel
 Event signal Injection, Recycle and Collect
 Auto cleanup To wash flow channel by program
 Pump stop timer To stop pump at 0 - 999 mins
 Bottle capacity To stop pump at 0-999 mL when collecting
 Timer with alarm To set alarm at 0-999 mins
 Dimensions 280(W) x 445(H) x 420(D)
 Power supply  100V, 500VA/200 - 240V, 500VA
 Weight 18 Kg
 Column stand Optional
 Solvent stand Optional
